Tokyo Micro gearmotor detailed data
All the data that's fit to print



Manufacturer
Tokyo Micro

Source
Mac floppy drive

TBR

Comments
This is a tiny motor you can extract from Mac floppy drives made by Mitsubishi. It's not as efficient as the Nihon motor, but about as small as a "sub-micro" servo (and much less troublesome). I'd be a big fan of these if they were easier to find.

Note that Omron also made some very similar motors; I have yet to test one of them...

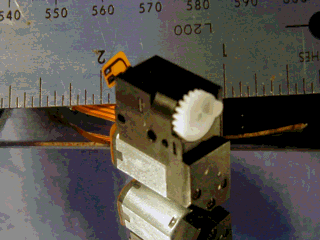

To the right I've got a picture of one (sitting on a mirror, for a bit better view), courtesy of Spudnuty. You'll note that this differs in a few details from my drawing; I suspect a few details in the plastic changed from year to year to keep track with changes in the floppy drive design.

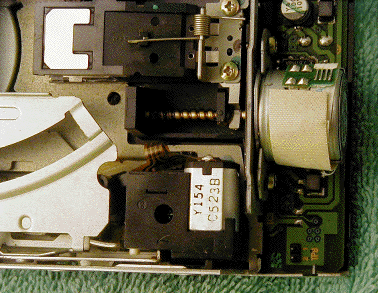

And here's another excellent picture of this motor courtesy of Spudnuty. Here you see a Tokyo Micro motor in its natural habitat -- namely, a Mitsubishi Mac floppy drive.

motor in floppy drive

This page presents all the data from my testing of a single example of a Tokyo Micro gearmotor. The test procedure I used is described elsewhere.

Voltage

No-load Current (mA)

No-load Speed (deg/sec)

Efficiency (deg / mW-sec)

0.5
25.5
0
0
1.0
54.1
0
0
1.0
37.7
24.3
0.6445
1.5
39.6
75.0
1.263
2.0
41.2
114.6
1.391
3.0
46.5
202.2
1.449
4.0
51.6
292.7
1.418
5.0
54.4
391.7
1.440

Current vs. voltage

Speed vs. voltage

Efficiency vs. voltage
