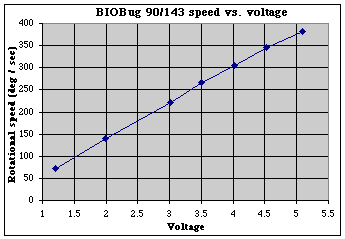

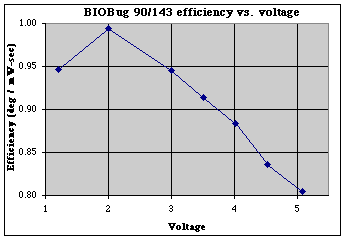

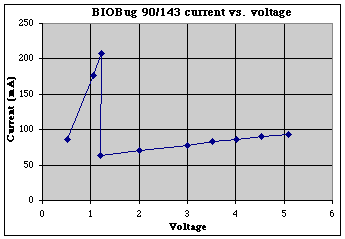

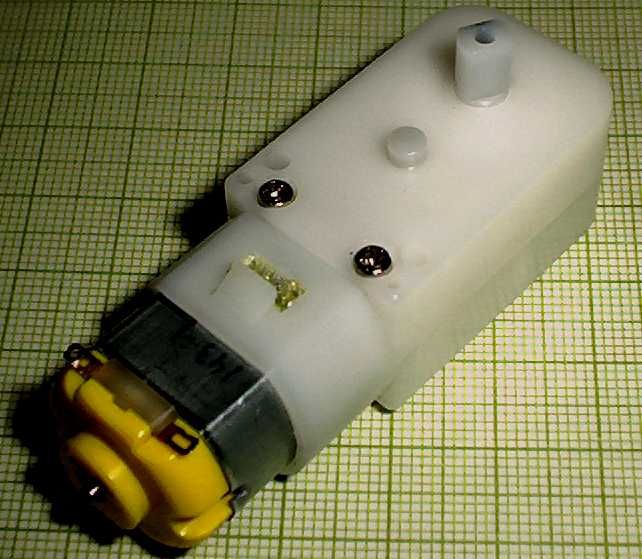

Home  Sources  Part descriptions  Electrical parts  Mechanical parts  DC motors  Geared motors Gearmotors compared Nihon details Copal details Omron details Omron gearhead details Tokyo Micro details TS-53 details CS-20bb details Microcassette details BIObug 143:1 details BIObug 177:1 details BIObug II 224:1 details  Stepper motors  Misc. parts Assembly descriptions   BEAM Pieces is a BEAM Reference Library site.		B.I.O. Bug 143:1 90 degree gearmotor detailed data All the data that's fit to print Manufacturer Unknown Source Hasbro Red "BIO Bug" Comments This is the rear motor for a red BIO Bug. 10 lines / cm This page presents all the data from my testing of a single example of the 143:1 90-degree motor used in the rear of a red "BIO Bug" (motor provided courtesy of Dave Hrynkiw of Solarbotics). The test procedure I used is described elsewhere. Voltage No-load Current (mA) No-load Speed (deg/sec) Efficiency (deg / mW-sec) 0.507 86.1 1.06 176.5 1.22 208.3 1.208 64 73.17 0.95 1.997 70 139.00 0.99 3.007 78 221.67 0.95 3.509 83 266.08 0.91 4.02 86 305.60 0.88 4.53 91 344.83 0.84 5.09 93 380.95 0.80     For more information... The original mechanical drawing for this motor is now online here.
